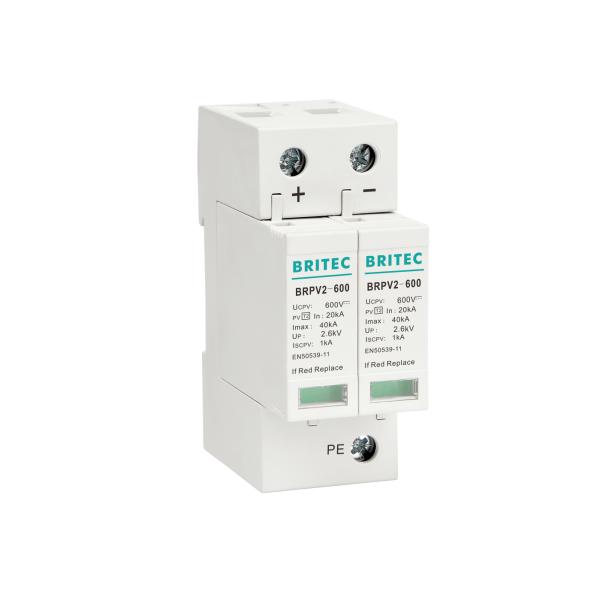

2 Mod DC 600V Surge Protective Device PV surge arrester
PV surge arrester Feature:
Usage: solar power
Pole: 2P 3P
voltage protection level (up):2.4KV
Max. discharge current(10/350μs):40kA
Packaging Details: standard export box package
PV Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
PV surge arrester Product Details:
| | BRPV2 600 |
| SPD classification according to EN61643-31 | Type 2 |
| SPD classification according to EN50539-11 | Class II |
| Max. continuous operating dc voltage Ucpv | 600V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level [(DC+/DC-)→PE] Up | ≤2.4kV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
PV surge arrester Dimension:
PV surge arrester Advantage:
● For equipotential bonding of positive and negative busbars of photovoltaic systems and elimination of transient
overvoltage that originates during the atmospheric discharges or switching processes.
● For Photovoltaic protection against surges at the boundaries from lightning protection.
For the lowest price please contact us.
Other type for choose:
1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V
Our Main Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Our Services:
• 22 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Why need surge arrester?
Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility. The use of adapted surge protections is then highly recommended.
Installation instruction:
• Mount the SPD on 35 mm DIN rail.
• The SPD is placed in parallel between the energized conductors and ground.
• The selected SPD must be specifically designed, rated and approved for application on dc PV voltages.
Company profile:
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
Our certificate:
We got CB, CE, TUV,RoHS Certificate:
Payment:
| Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment. |
| FOB |
| CIF | 30% T/T in advance, paid the balance against copy of B/L. |
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight. |
| Paypal | Amount lower than 5000usd. |
| Delivery Time | 15-30 days after receiving deposit. |
FAQ:
Q1: How long is your product's warranty?
A: The warranty period for our products is 5 Years.
Q2: How about inspection?
A: We have the whole inspection system from raw material to end products.
Q3: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
